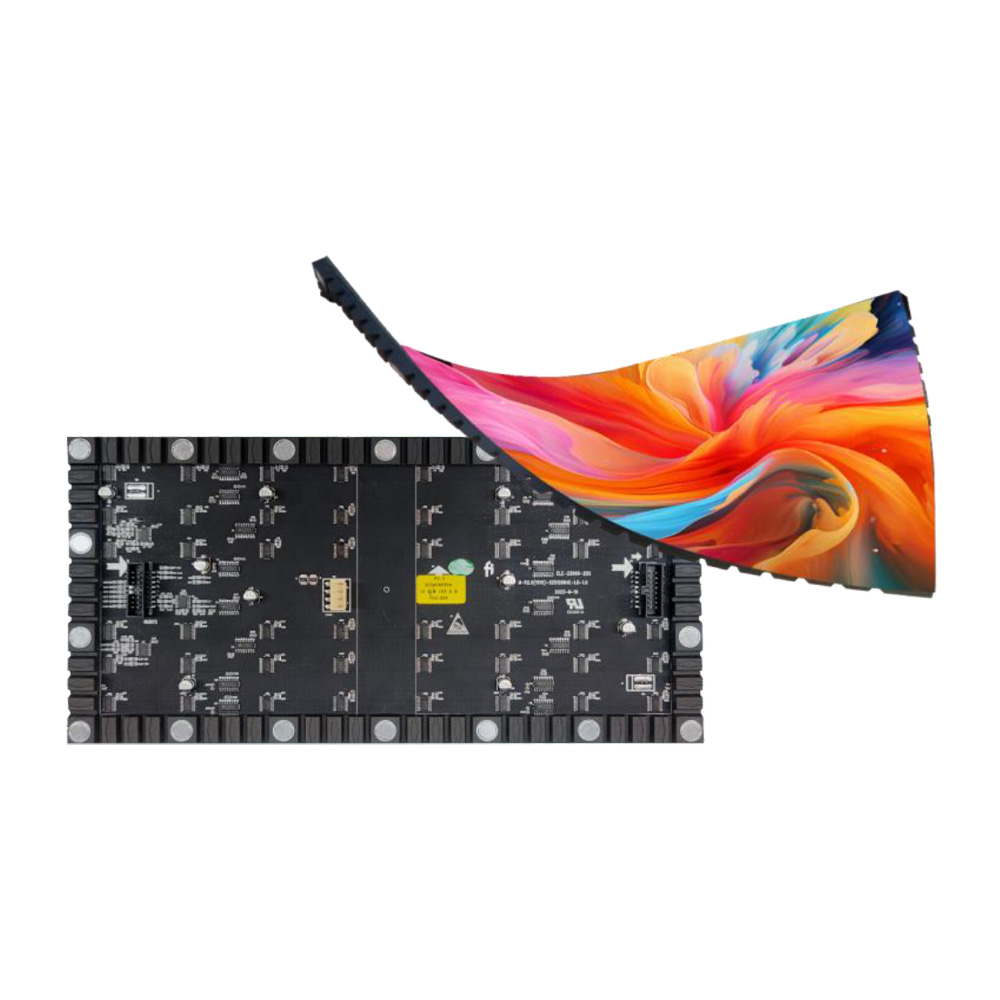

Capable of creating innovative shapes such as inner arcs, outer arcs, and cylinders
Multi-point strong magnetic adhesion prevents module warping
Supports GOB technology (waterproof | dust-proof | impact-resistant)
Single module can bend at a 90° right angle
Compatible with both flexible and rigid modules
| Parameter Name | Indoor P2.5 Flexible LED Module |
|---|---|
| Pixel Structure | 1R1G1B |
| Lamp Spec | SMD2121 |
| Pixel Pitch (mm) | 2.5 |
| Drive IC | Constant current drive |
| Scan Mode | 1/32S |
| Module Resolution (W*H) | 128*64 |
| Module size (W*H*D, mm) | 320*160*8.6 |
| Pitch Density(dot/㎡) | 160000 |
| Weight (Typical) | ≈280g |
| Power interface | VH4 |
| Signal interface | HUB75 |
| Parameter Name | Indoor P2.5 Flexible LED Module |
|---|---|
| Brightness (nits) | 700 cd/㎡ (adjustable) |
| Color Temperature (K) | 3000-9300K (adjustable) |
| Viewing Angle (V; H) ° | 140° : 140° |
| Deviation of the center distance | <3% |
| Brightness uniformity | ≥98% (After correction) |
| Chromaticity uniformity | Within±0.003Cx,Cy (After correction) |
| Grey scale | 12Bit |
| Contrast Ratio | 3000:1 |
| Best View in Distance | ≥3.8m |
| Brightness correction | Support |
| Parameter Name | Indoor P2.5 Flexible LED Module |
|---|---|
| Maximum current (typical) | ≤4.5A |
| Maximum power (typical) | ≤22.5W |
| Working Voltage | DC4.2 ~ 5V |
| Maintenance mode | Front & Rear Service |
| Refresh Rate (Hz) | ≥3840 |
| Refresh frame frequency (Hz) | 50&60 |
| Parameter Name | Indoor P2.5 Flexible LED Module |
|---|---|
| Working Voltage | AC: 120V~240V, 50~60Hz |
| Peak power consumption (w/m²) | ≤500 |
| Ave. power consumption (w/m²) | ≈170 |
| Continuous working hours | ≥7×24hours |
| Life span (theoretical) | 100,000Hours |
| Operating Temperature (℃) | -20—60℃ |
| Storage temperature (℃) | -40—60℃ |
| Operating humidity (RH) | 10-90%RH No Gel |
| Storage humidity (RH) | 10-85%RH No Gel |
