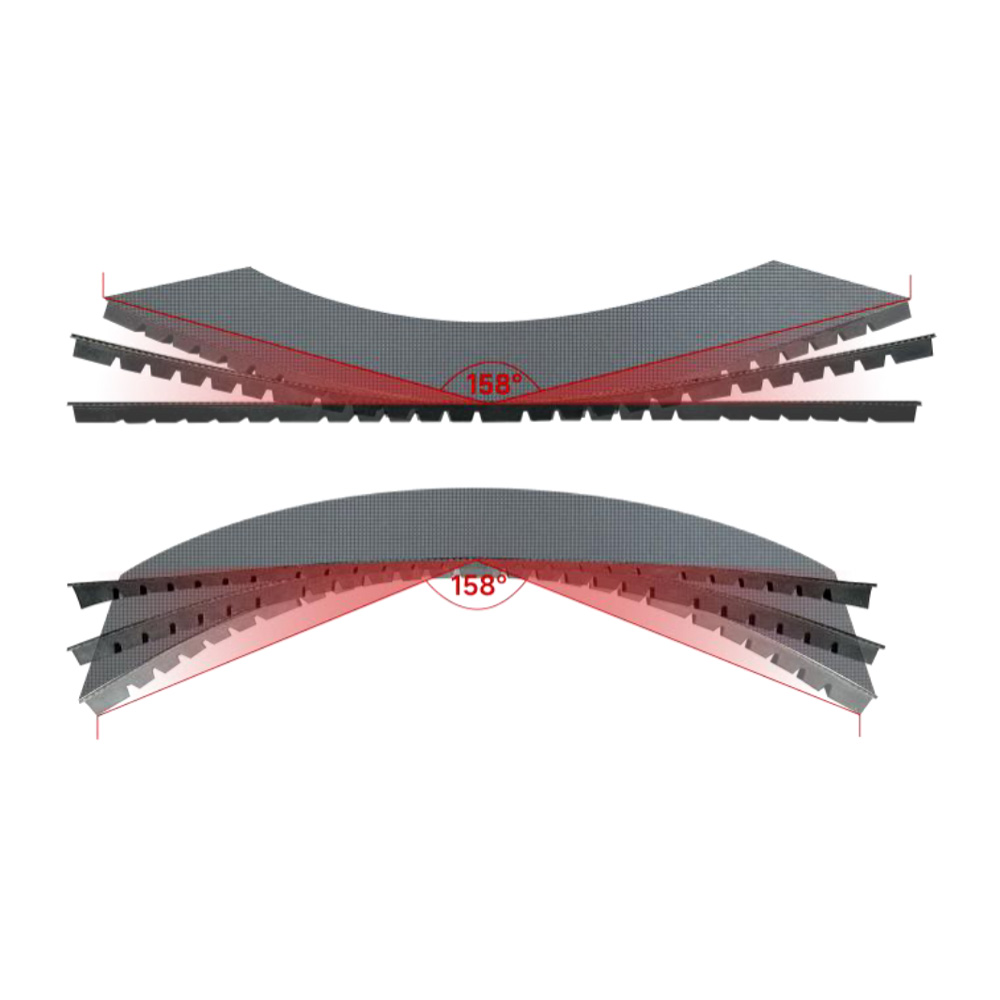

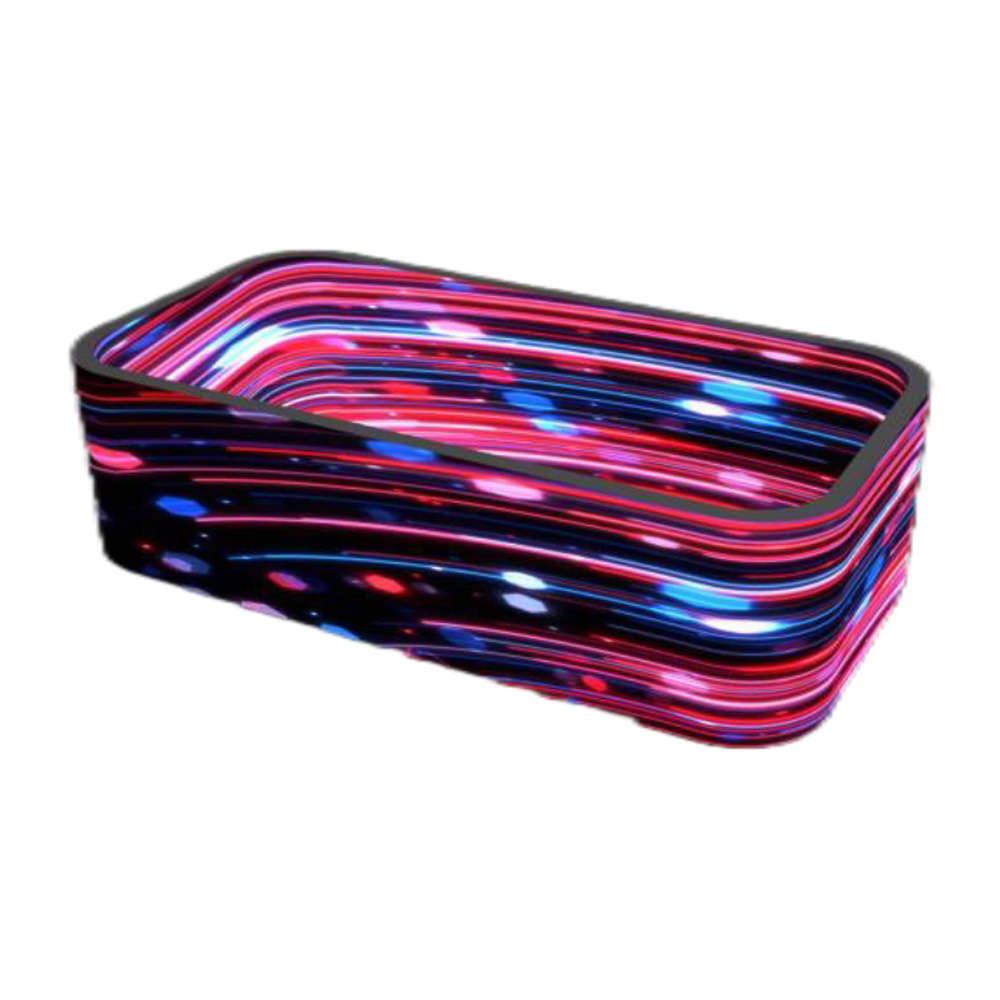

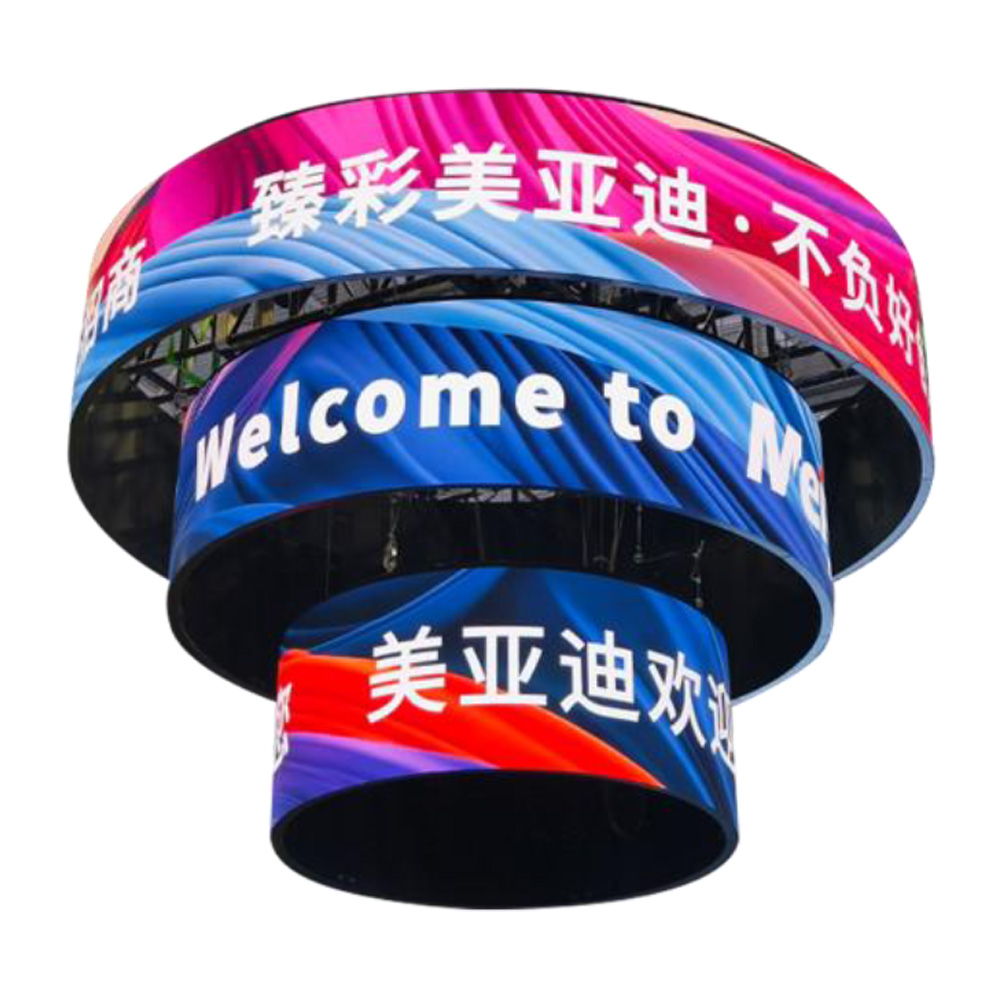

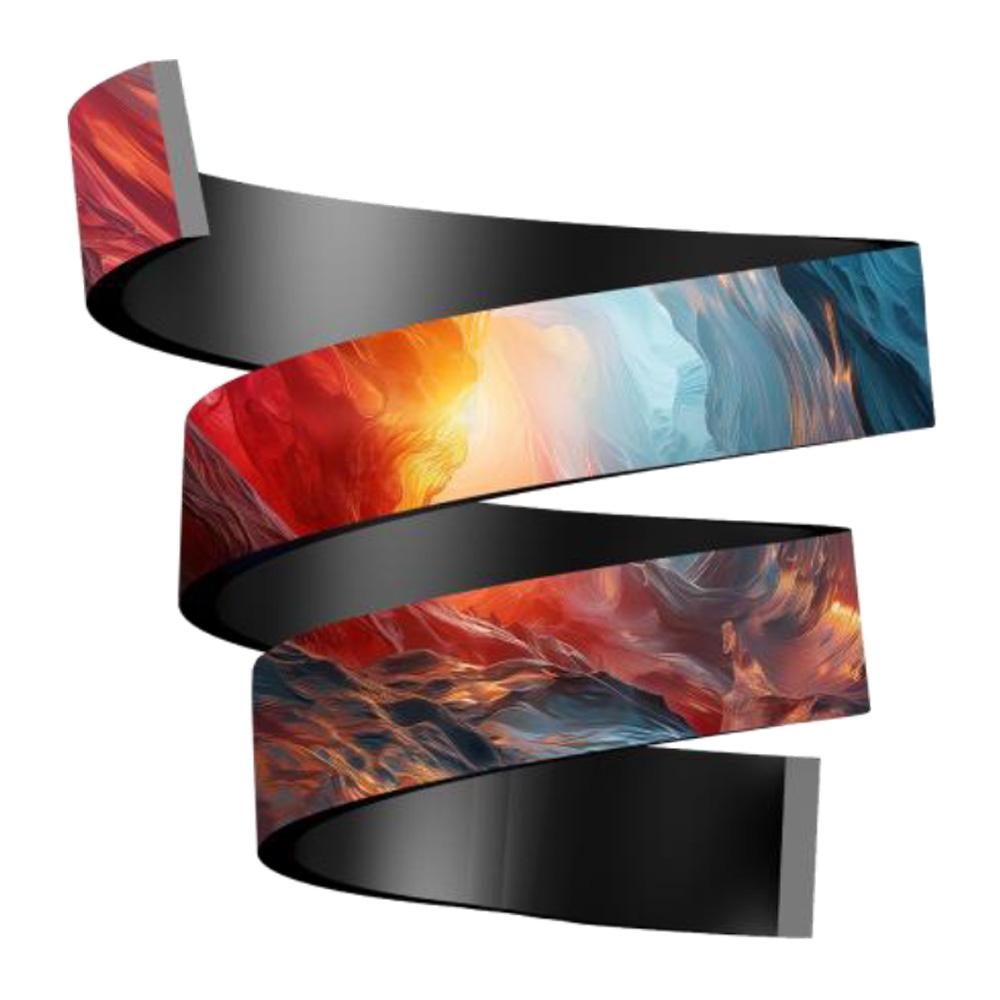

Capable of creating innovative shapes such as inner arcs, outer arcs, and cylinders
Multi-point strong magnetic adhesion prevents module warping
Supports GOB technology (waterproof | dust-proof | impact-resistant)
Single module can bend at a 90° right angle

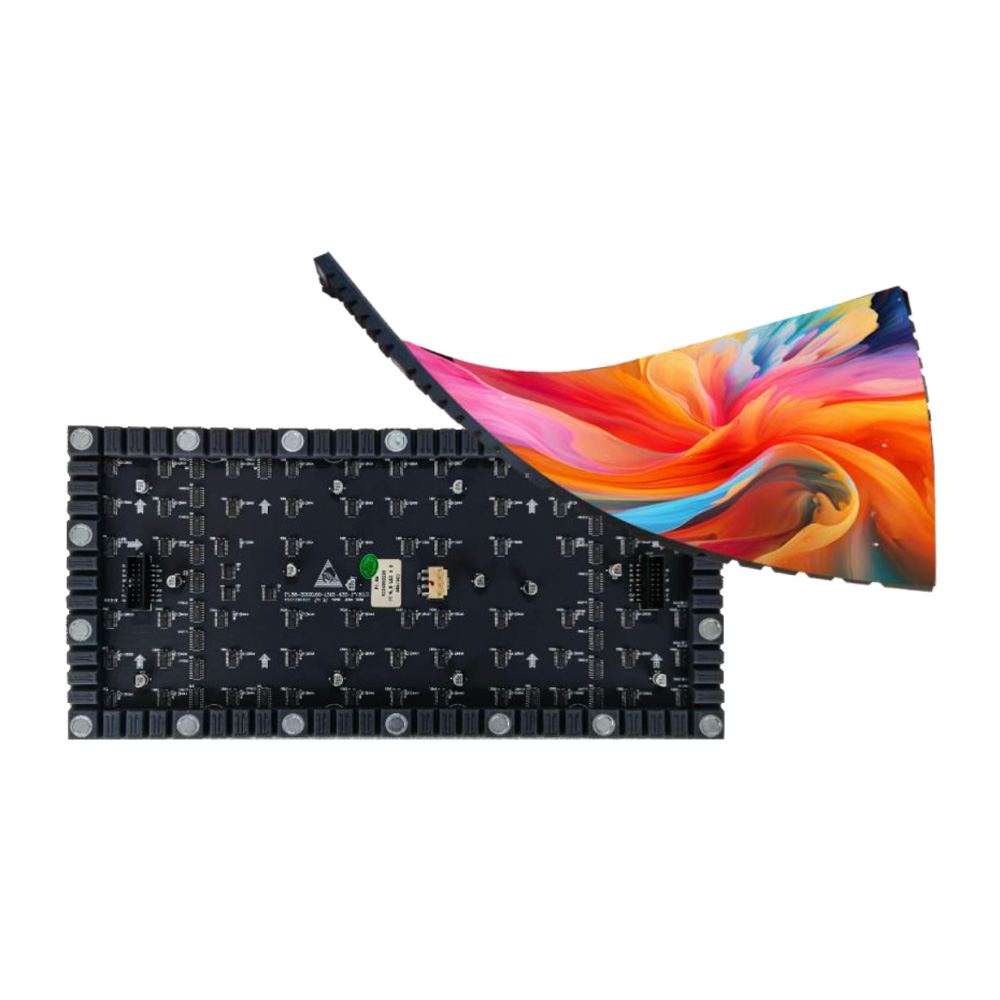

Compatible with both flexible and rigid modules
| Parameter Name | Indoor P1.86 Flexible LED Module |
|---|---|
| Pixel Structure | 1R1G1B |
| Lamp Spec | SMD1515 |
| Pixel Pitch (mm) | 1.86 |
| Drive IC | Constant current drive |
| Scan Mode | 1/52S |
| Module Resolution (W*H) | 172*86 |
| Module Size (W*H*D, mm) | 320*160*8.6 |
| Pitch Density(dot/㎡) | 289051 |
| Weight (Typical) | ≈280g |
| Power interface | VH4 |
| Signal interface | HUB75 |
| Parameter Name | Indoor P1.86 Flexible LED Module |
|---|---|
| Pixel Structure | 1R1G1B |
| Lamp Spec | SMD1515 |
| Pixel Pitch (mm) | 1.86 |
| Drive IC | Constant current drive |
| Scan Mode | 1/52S |
| Module Resolution (W*H) | 172*86 |
| Module Size (W*H*D, mm) | 320*160*8.6 |
| Pitch Density(dot/㎡) | 289051 |
| Weight (Typical) | ≈280g |
| Power interface | VH4 |
| Signal interface | HUB75 |
| Parameter Name | Indoor P1.86 Flexible LED Module |
|---|---|
| Brightness (nits) | 700 cd/㎡ (adjustable) |
| Color Temperature (K) | 3000-9300K (adjustable) |
| Viewing Angle (V; H) ° | 140° : 140° |
| Deviation of the center distance | <3% |
| Brightness uniformity | ≥98% (After correction) |
| Chromaticity uniformity | Within±0.003Cx,Cy (After correction) |
| Grey scale | 12Bit |
| Contrast Ratio | 3000:1 |
| Best View in Distance | ≥2.8m |
| Brightness correction | Support |
